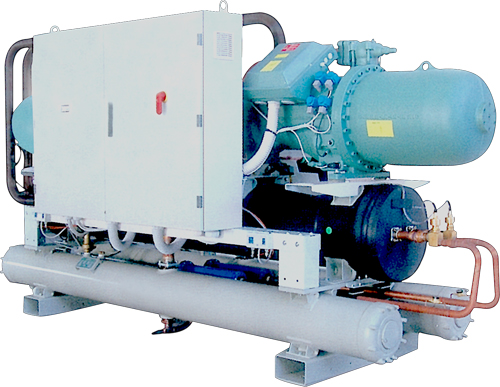

Water Cooled Chilling Plant




Water Cooled Chilling Plant Manual


STANDARD FEATURES

● Compact & space saving.

● Easy to install & low maintenance cost.

● Low power consumption.

● Energy efficient air / water cooled compact chillers syitable for working in high ambient conditions.

● Manufactured & Design as per customer application.

● Control panel, visual function & fault indicator, Digital temperature controller.

High / Low Pressure Guage and cutout with miniature circuit breaker system.

● Mimic display on panel.

● Low noise running and no pollution.

METHODOLOGY FOR QUALITY IMPROVEMENT

We define the DEGREE OF QUALITY EXCELLENCE while designing the chilling plant use supporting tools and techniques for quality improvement. All major components are procured from reputed and well known OEM'S. Our chilling plants are fabricated as per customer requirement and application. Refrigeration controls used in systems are imported and ZERO DEFECT to meet exact needs of customer satisfaction.

Model No. Cooling Capacity
(KCAL/HR)
Water Flow
Rate (LPH)
Chiller Circulation Pump
(H.P)
Condensser Circulation Pump
(H.P)
Connected Load
NCP-1005/WC 15000 3750 1.0 1.0 5.2
NCP-1008/WC 24000 6000 1.5 1.5 8.2
NCP-1010/WC 30000 7500 2.0 2.0 10.5
NCP-1015/WC 45000 11250 3.0 3.0 15.6
NCP-1020/WC 60000 15000 3.0 5.0 21
NCP-1025/WC 75000 18750 5.0 5.0 26.1
NCP-1030/WC 90000 22500 5.0 5.0 30
NCP-1040/WC 120000 30000 5.5 7.5 39.1
NCP-1050/WC 150000 37500 7.5 7.5 48.5
NCP-1060/WC 180000 45000 7.5 7.5 56
NCP-1080/WC 240000 60000 10.0 7.5 73
NCP-10100/WC 300000 75000 10.0 10.0 90
NCP-10125/WC 375000 93750 15.0 10.0 112
NCP-10150/WC 450000 112500 15.0 10.0 131
NCP-10175/WC 525000 131250 15.0 15.0 153
NCP-10200/WC 600000 150000 20.0 15.0 175.3
NCP-10225/WC 675000 168750 20.0 15.0 194
NCP-10250/WC 750000 187500 25.0 20.0 220
NCP-10300/WC 900000 225000 30.0 25.0 265
NCP-10350/WC 1050000 262600 30.0 25.0 303

APPLICATIONS

Plastics Processing Unit

● Pharmaceuticals & Chemical Process

● Plating & Anodising

● Lubricants & Oil Cooling

● Industrial Coolants

● Milk, Dairy & Food products etc.
